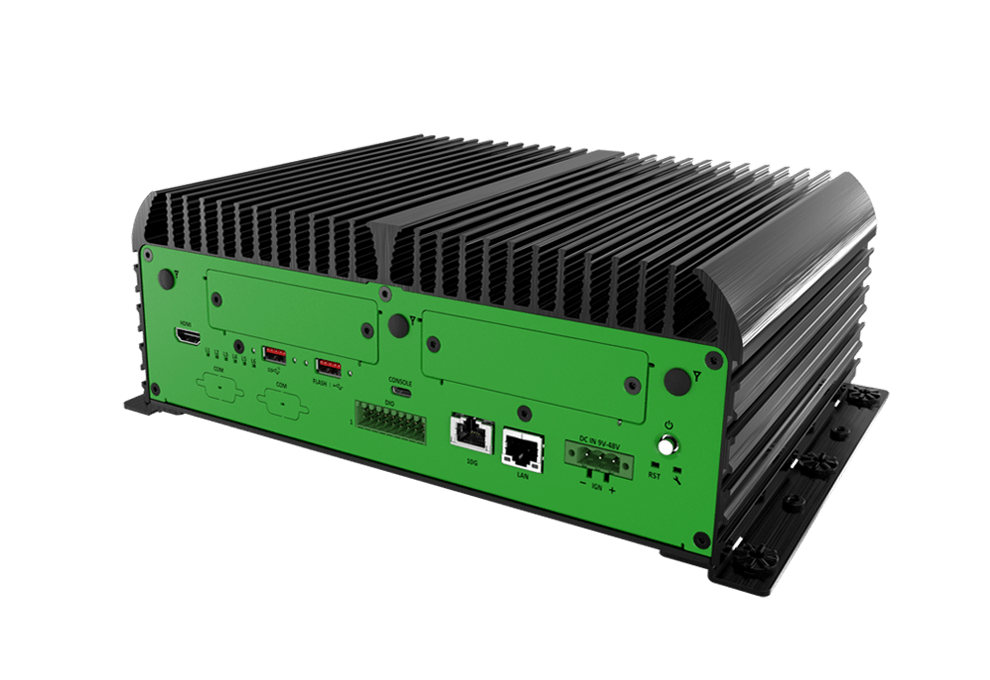

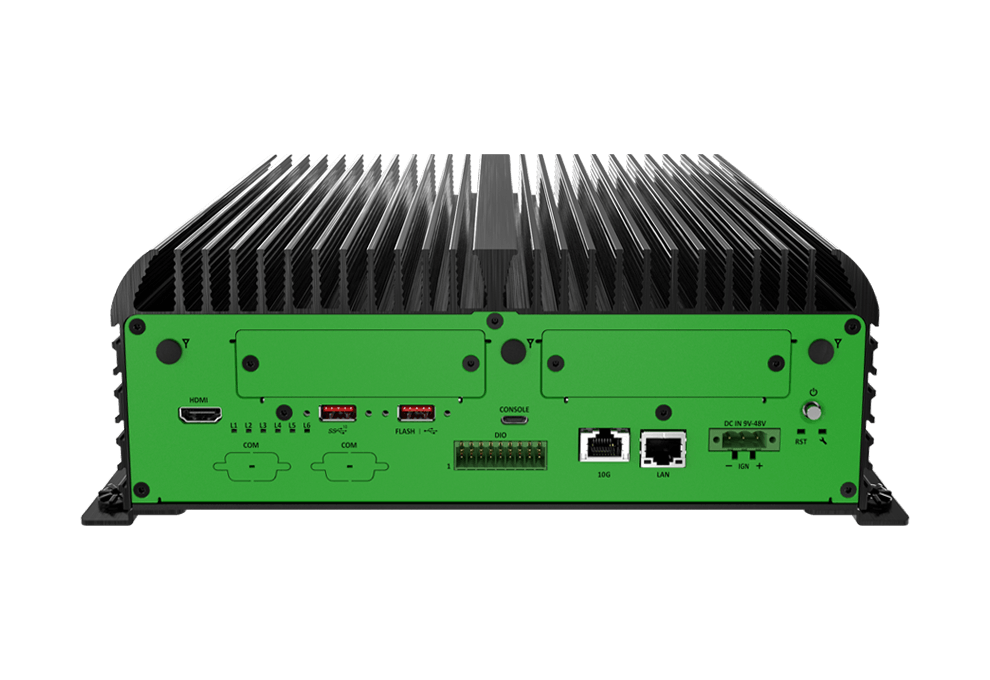

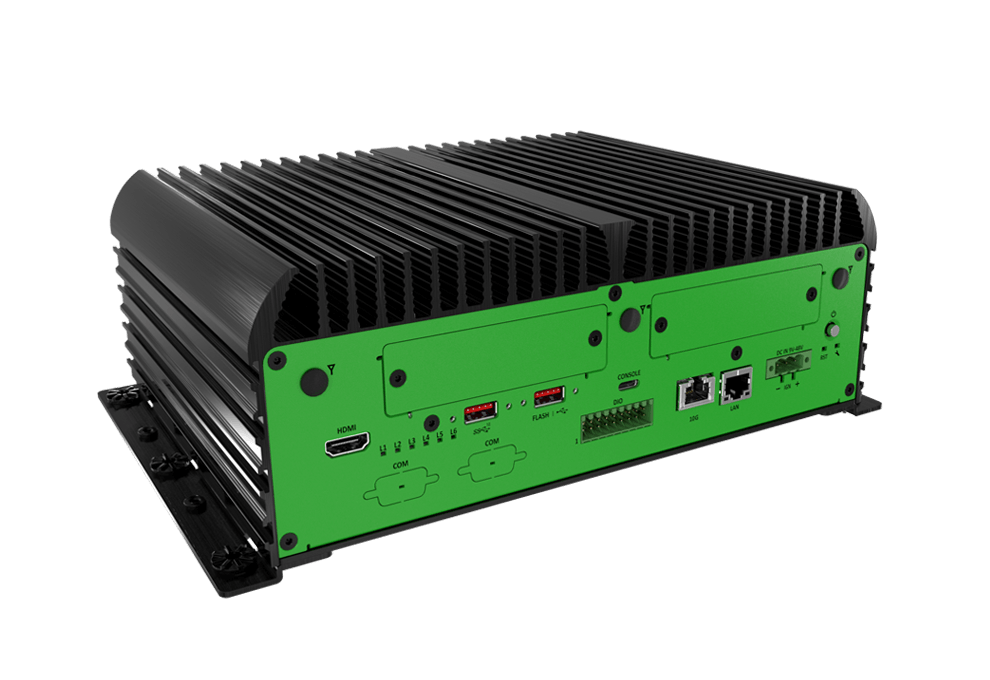

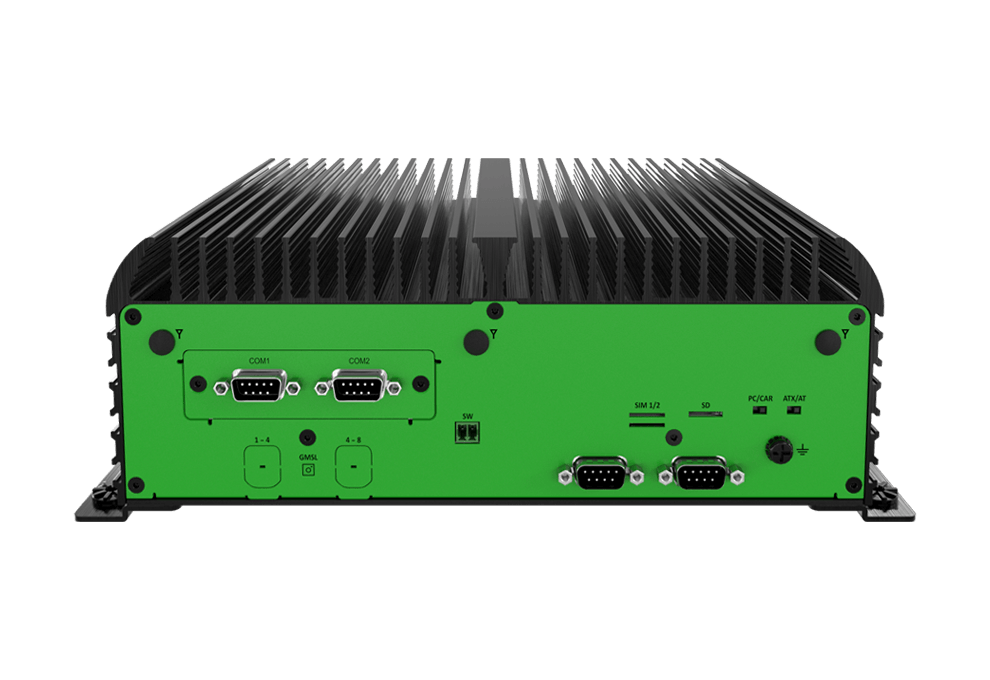

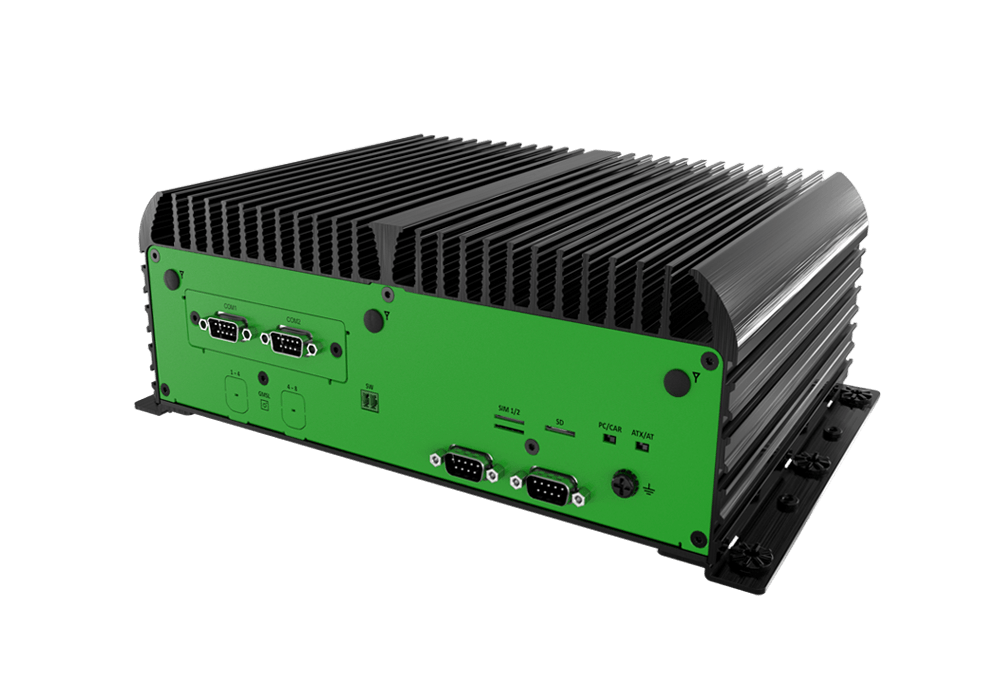

JCO-6000-ORN-A

NVIDIA Jetson AGX Orin™ AI Computer with 8-core/12-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2x EDGEBoost I/O Support

FEATURES

• 8-core/12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
• LPDDR5 3200MHz on SOM. 32 GB/64 GB
• 1x HDMI, 3840 x 2160 @ 60Hz
• 1x GbE, 1x 10 GbE (Wake-on-LAN and PXE)
• 2x External SIM Socket, 1x Micro SD Socket
• 1x eMMC 5.1 Storage, 64 GB
• 1x M.2 (M Key, 2242/2260/2280, PCIe x4, Support NVMe)
• 1x USB 3.2 Gen 2, 1x USB Type C, 1x USB 2.0
• 8x DI + 8x DO with isolation
• 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
• Wide Operating Temperature -20°C to 60°C (60W CPU)
• Support GMSL 2 QUAD Port Mini Fakra, 8x Ports | 1280×720 @30FPS (optional)
• Up to 2x EDGEBoost I/O Support
